Key features:

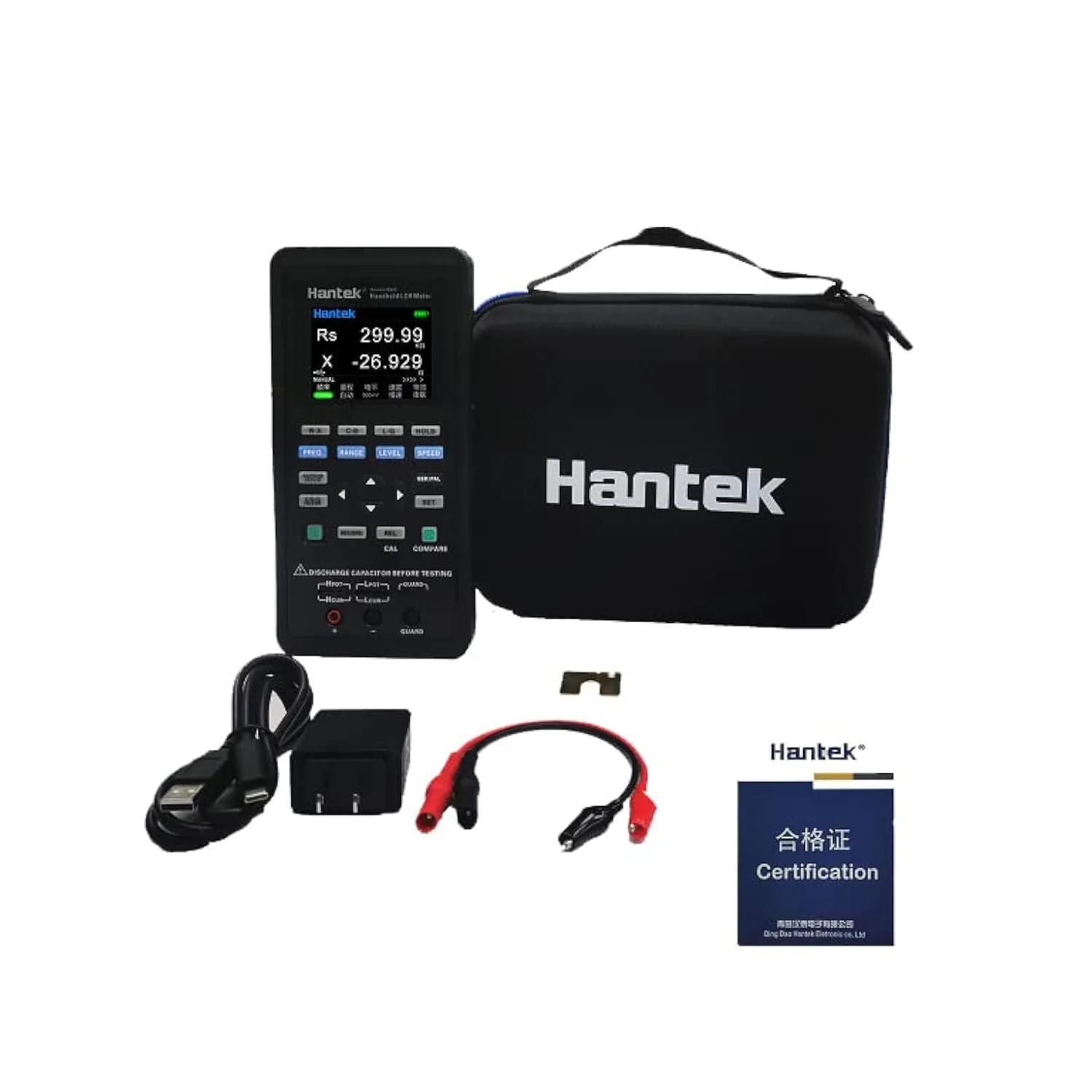

Hantek1832C/Hantek1833C handheld LCR Meter is a portable handheld measuring instrument to measure the parameters of the component such as inductance, capacitance, resistance and so on. small volume,
powered by 5V lithium battery, it can meet the requirements of desktop LCR application, and can also be applied to flow measurement and handheld measurement.

100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz, 40kHz, 50kHz, 75kHz, 100kHz 10 ty pical test frequency (Hantek1832C) 7 typical test frequency
2.8 inch TFT LCD, Switch between Chinese and English
HD display, dual display of measurement data, the result is clear
Support data record analysis
Support PC upper computer, easy to control and measure remotely
Test lead: 3 terminal/5 terminal switch
Measuring speed: high speed/intermediate speed/low speed switch
Range: support manual/auto switch, easy to do quick measurement
LCR adopted rechargeable design, Large capacity lithium battery, super standby
Double shock protection sleeve, all-round protection, shakeproof, fall-arrest, protect
the machine from damage, longer use time, more comfortable measurement
Bracket design, easy to put and measure

• Is Discontinued By Manufacturer ‏ : ‎ No
• Product Dimensions ‏ : ‎ 8.66 x 5.91 x 4.72 inches; 1.1 Pounds
• Batteries ‏ : ‎ 1 Lithium Ion batteries required. (included)
• Date First Available ‏ : ‎ October 8, 2023
• Manufacturer ‏ : ‎ Hantek
• Country of Origin ‏ : ‎ China
