Wimaxit WIMAXIT M728 Overview
- 1Description
- 2Raspberry Pi Compatible
- 3Dual Speakers
- 45-Point Multi-Touch Support
- 5Plug-and-Play Design
- 6Compatibility

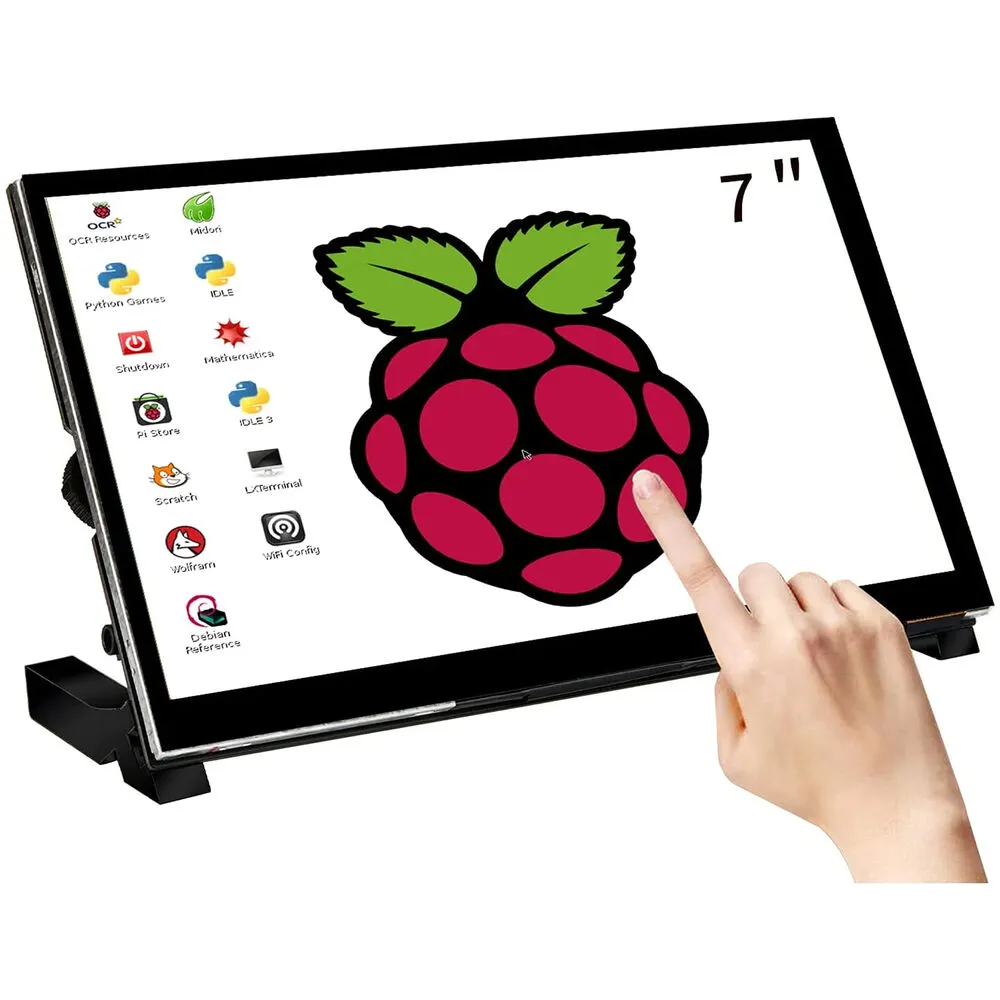

Level up your DIY project or expand your screen space on the go with the M728 7" Touchscreen Display for Raspberry Pi from Wimaxit. It features a 5-point touch screen and dedicated rear mounting options for compatible Raspberry Pi systems.

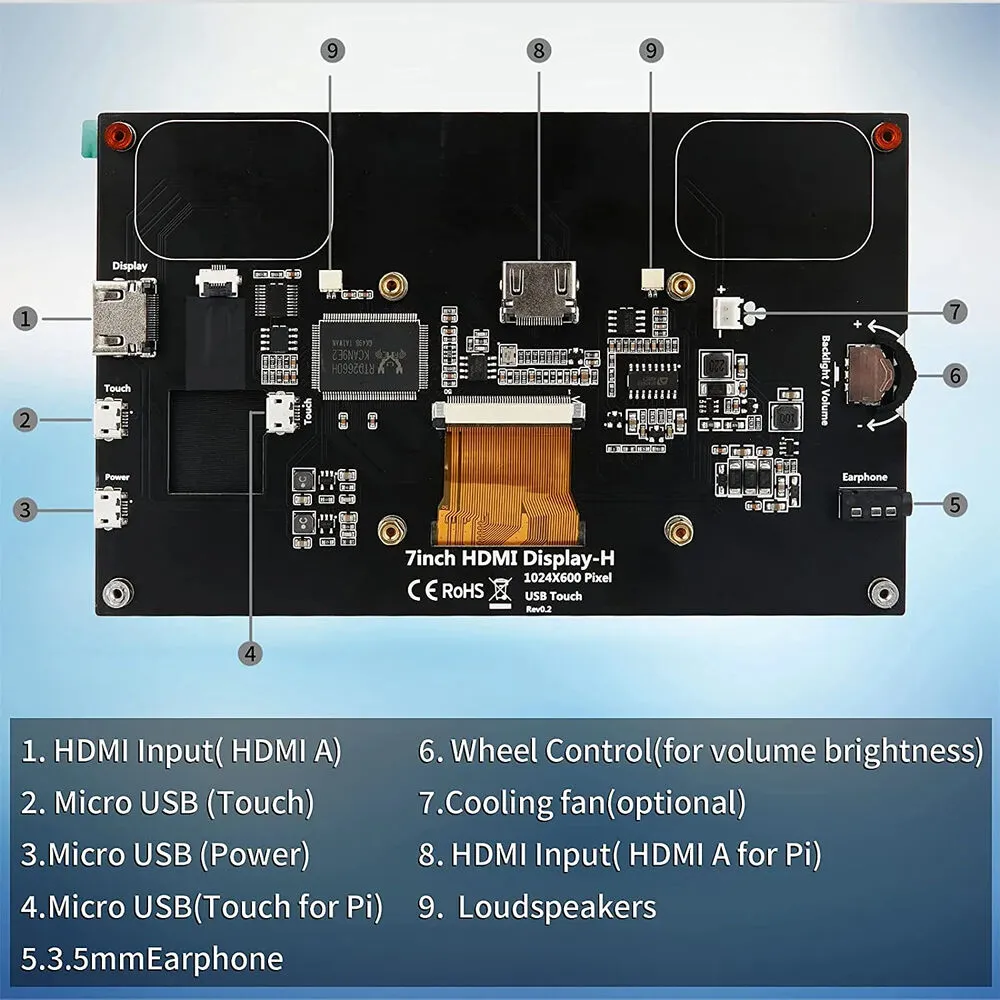

The 1024 x 600 resolution IPS display provides 178° wide viewing angles, enabling deployment in a variety of environments, while the 6H hardness glass panel keeps it protected from scratches. The M728 includes HDMI and micro-USB adapters which handle power and signal conversion for Raspberry Pi 2/3/4 systems, allowing for a cable-free installation. Its HDMI and micro-USB inputs located on the side offer compatibility with a wide range of devices, such as Windows laptops, smartphones, and gaming consoles. For audio, connect headphones to the 3.5mm jack or take advantage of the two rear-mounted DIY speakers.
- Windows 7 Pro, 8, 10 or later
- Linux
- Raspberry Pi
- Banana Pi
- BeagleBone Black
- Raspbian
- Kali Linux
- Ubuntu

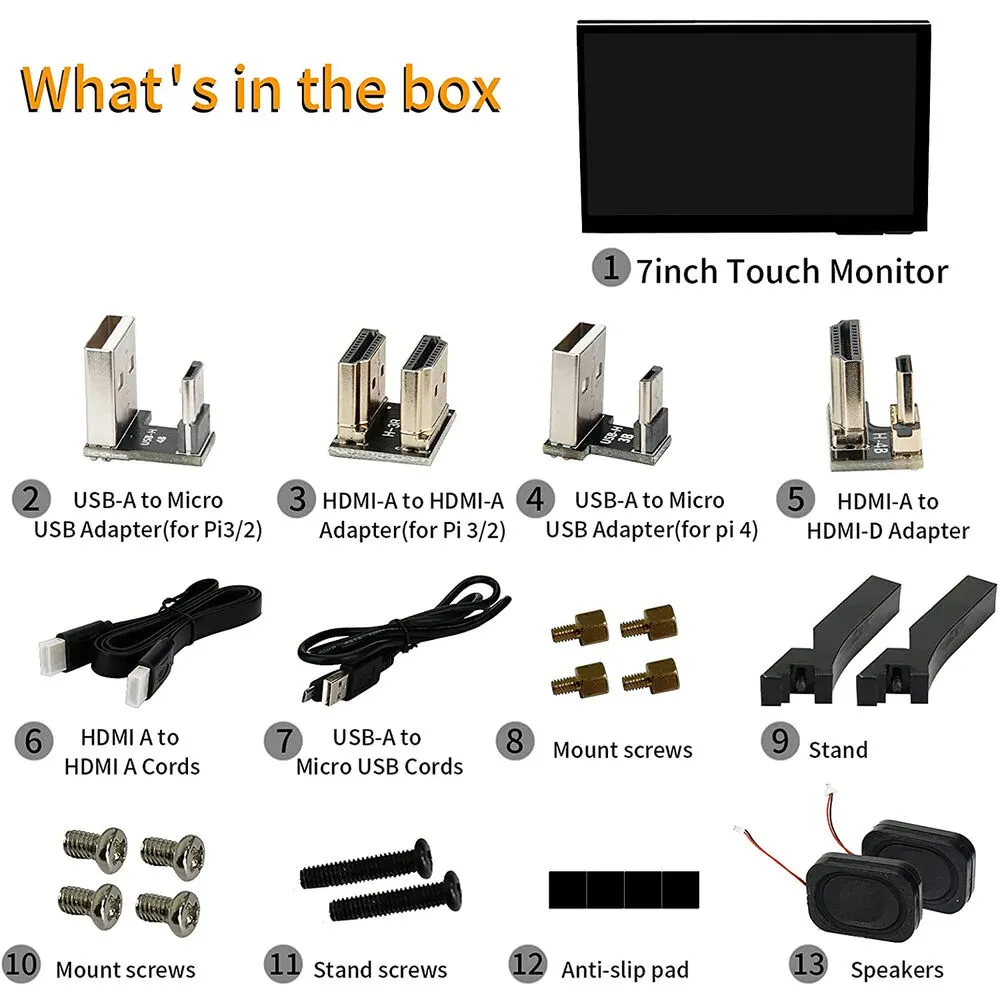

In the Box
- Wimaxit M728 7" Touchscreen Display for Raspberry Pi
- USB-A to Micro-USB Adapter (for Pi 2/3)
- HDMI to HDMI Adapter (for Pi 2/3)
- USB-A to Micro-USB Adapter (for Pi 4)
- HDMI to Micro-HDMI Adapter
- HDMI to HDMI Cable
- USB-A to Micro-USB Cable
- Screwdriver
- 2 x Stand Legs
- 10 x Mounting Screws
- 2 x Speakers
- Limited 1-Year Manufacturer Warranty
- Description
- Raspberry Pi Compatible
- Dual Speakers
- 5-Point Multi-Touch Support
- Plug-and-Play Design
- Compatibility
Wimaxit WIMAXIT M728 Specs
| Display Size | 7" |
| Panel Type | IPS-Type LCD |
| Resolution | 1024 x 600 |
| HDR Compatibility | No |
| Touchscreen Technology | Yes |
| Inputs | 2x HDMI |
| Outputs | 1x 1/8" / 3.5 mm |
| USB I/O | 3x Micro-USB 2.0 |
| Display Size | 7" |
| Panel Type | IPS-Type LCD |
| Aspect Ratio | 16:9 |
| Resolution | 1024 x 600 |
| HDR Compatibility | No |
| Refresh Rate | 60 Hz |
| Variable Refresh Technology | No |
| Viewing Angle (H x V) | 178 x 178° |
| Pixels Per Inch (ppi) | 60 ppi |
| Touchscreen Technology | Yes |
| Hardness Rating | 6H |
| Inputs | 2x HDMI |
| Outputs | 1x 1/8" / 3.5 mm |
| HDCP Support | No |
| USB I/O | 3x Micro-USB 2.0 |
| Built-In Speakers | Yes, 2 |
| DC Input Power | 5 VDC at 3 A |
| Power Adapter Type | External |
| Tilt Adjustment | No |
| Lock Slot | No |

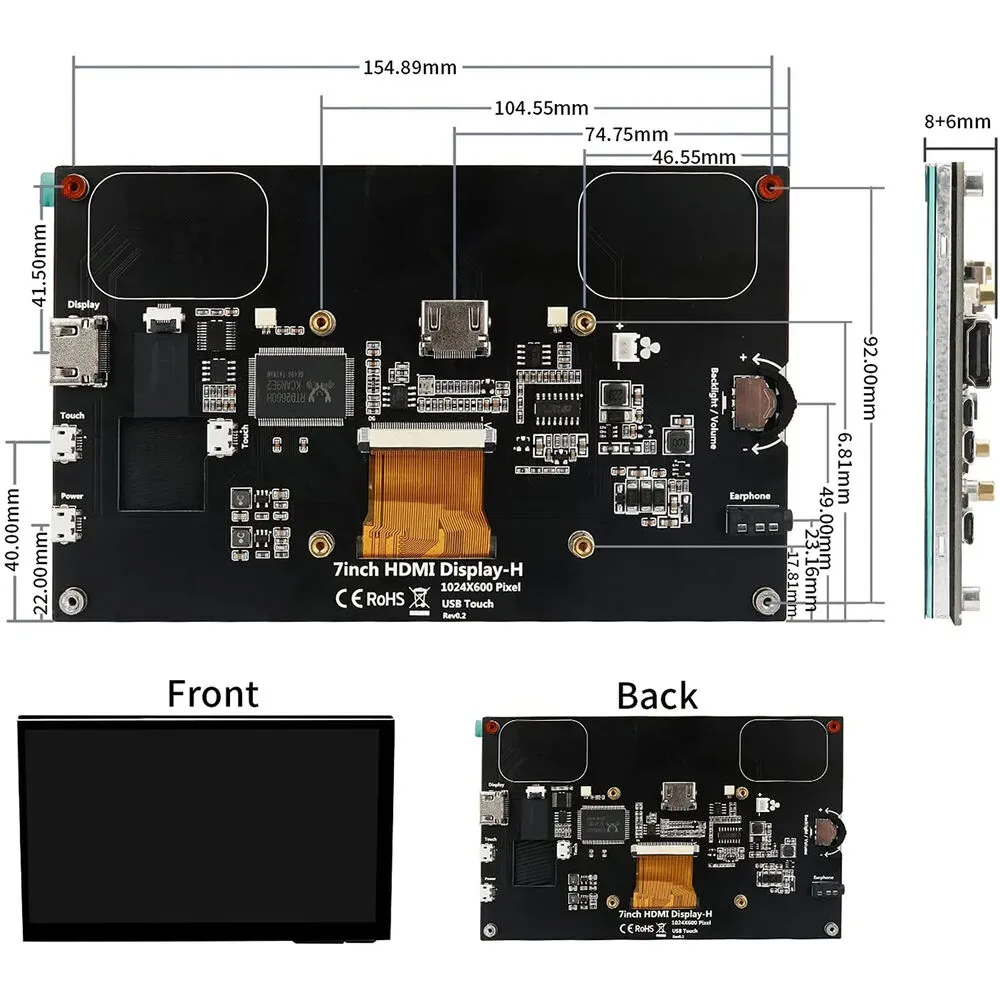

| Dimensions | 6.1 x 3.6 x 0.6" / 154.7 x 91.4 x 14 mm |
| Package Weight | 1.225 lb |
| Box Dimensions (LxWxH) | 8.2 x 5.6 x 2.7" |
